EE671 (0-20m/s) HVAC Miniature Air Flow Transmitter
HVAC用微型风速变送器
EE671（EE575升级版本）系列是专为HVAC应用而设计的一款紧凑型风速变送器。
产品内置VTQ型风速敏感元件,该敏感元件结合了E+E研发的高品质薄膜生产技术和先进的塑封工艺的优点。
它使用了新型的热膜风速工作原理，保证了测量的高精度和重复性， 并且使产品获得了良好的长期稳定性和优秀的抗污染能力。
EE671风速变送器提供电缆型和接头型两种安装方式。其风速测量范围最高可达20m/s，模拟输出方为0 - 1V, 0 - 5V 或0 - 10V的标准电压信号。
产品的包装盒内配有标准的安装法兰。安装法兰用于现场风速变送器的快速安装， 同时，应确保探杆上的风速流向标记和风道中的实际风流方向相一致。
用户可选用E+E专业的组态软件，通过E+E专用数字通讯接口对变送器进行参数选择和量程设置，并对探头进行校准。
典型应用
- HVAC暖通空调系统
- 流量监测和控制
- 烘箱入口空气监测
EE671
HVAC Miniature Air Flow Transmitter

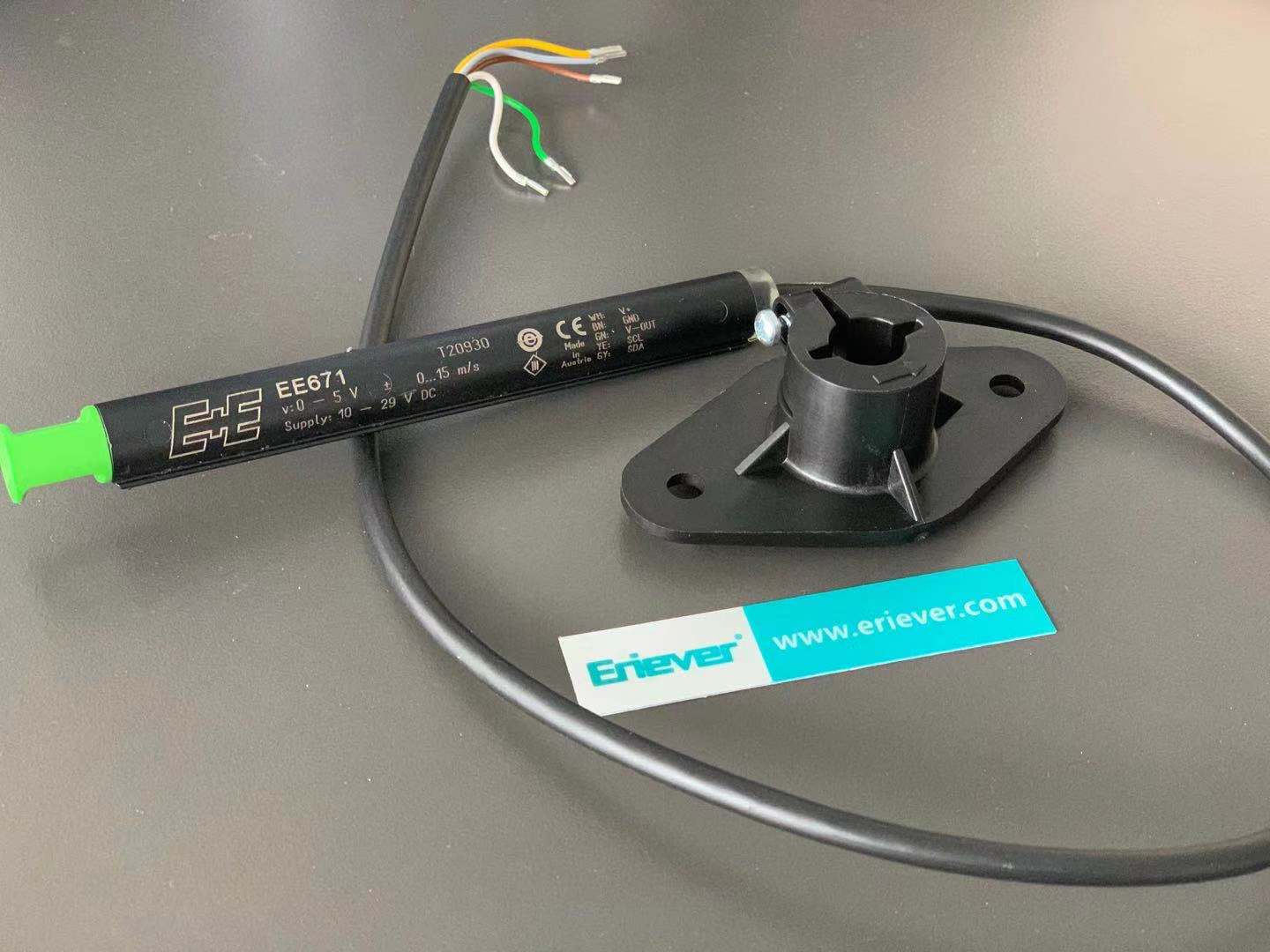

EE671 is a compact air velocity probe for HVAC applications. The built-in flow sensing element VTQ combines the advantages of state-of-the-art E+E thin-film manufacturing and of the newest transfer molding technology.
It operates on the hot-film anemometer principle and ensures high accuracy and reproducibility as well as long-term stability and outstanding resistance to pollutants.
EE671 is available with fix installed cable or with plug connection. The measured air velocity up to 20 m/s (4000 ft/min) is available as linear voltage output 0 - 1 V, 0 - 5 V or 0 - 10 V.
The alignment strip on the probe and the matching mounting flange within the scope of supply simplify installation and correct positioning in the air flow. The flange enables the immersion depth to be infinitely variable.
With an optional configuration kit the user can set via a digital setup interface the output configuration and perform an adjustment of the probe.
Features
- High accuracy and long-term stability
- Outstanding resistance to contamination
- Easy and quick mounting
- User configurable
Typical Applications
- Heating and ventilation systems
- Flow monitoring and control
- Inlet air monitoring in ovens
技术资料
-
0...5m/s (0...1000ft/min)
Measuring range
0...10m/s (0...2000ft/min)
0...15m/s (0...3000ft/min)
0...20m/s (0...4000ft/min) -
0.5... 5m/s: ±(0.2m/s (40ft/min) +3% of MV)
Accuracy
1... 10m/s: ±(0.3m/s (60ft/min) +4% of MV)
1... 15m/s: ±(0.35m/s (70ft/min) +5% of MV)
1... 20m/s: ±(0.4m/s / 80ft/min +6% of MV) -
0-1/5/10 V (max. 1 mA)
Outputs -
10-29V DC SELV
Supply
-
——替代如下老型号
概览
EE575
系列是专为大风量环境应用设计的一款紧凑型风速变送器，小巧的设计使它可以应用于许多不同的场合。EE575 使用E+E公司特有的薄膜敏感元件作为测量核心，基于热膜风速计原理研发出的高质量敏感元件保证了测量的高精度和敏感度，创新的设计使益加义风速计与传统的热丝式风速计相比，对灰尘和其他污染的敏感度更低，测量的重复性和长期稳定性更好。
EE575 安装方便快捷，探头杆上的对准线与安装法兰能清楚的指示传感探头安装的方向。安装法兰可随意调节变送器探头的插入深度。探杆内的电子电路能提供一个线形的模拟输出信号：0-5V 或 0-10V DC，对应的风速范围可选 0...5m/s (0...1000ft/min) / 0...10m/s (0...2000ft/min)或者0...20m/s (0...4000ft/min)。
技术资料
| 测量范围 | 0...5m/s (0...1000ft/min) |
| 0...10m/s (0...2000ft/min) | |
| 0...20m/s (0...4000ft/min) | |
| 响应时间 | t90: typ. 4 sec (at 10m/s (2000ft/min)) |
| 输出 | 0...5V |
| 0...10V | |
| 精度 | 0.5... 5m/s (100...1000ft/min): ±(0.2m/s / 40ft/min +3% of MV) |
| 1... 10m/s (200...2000ft/min): ±(0.3m/s / 60ft/min +4% of MV) | |
| 1... 20m/s (200...4000ft/min): ±(0.4m/s / 80ft/min +6% of MV) | |
| 供电 | 10...19V DC |
| 19...29V DC |
