23.Oct.2019

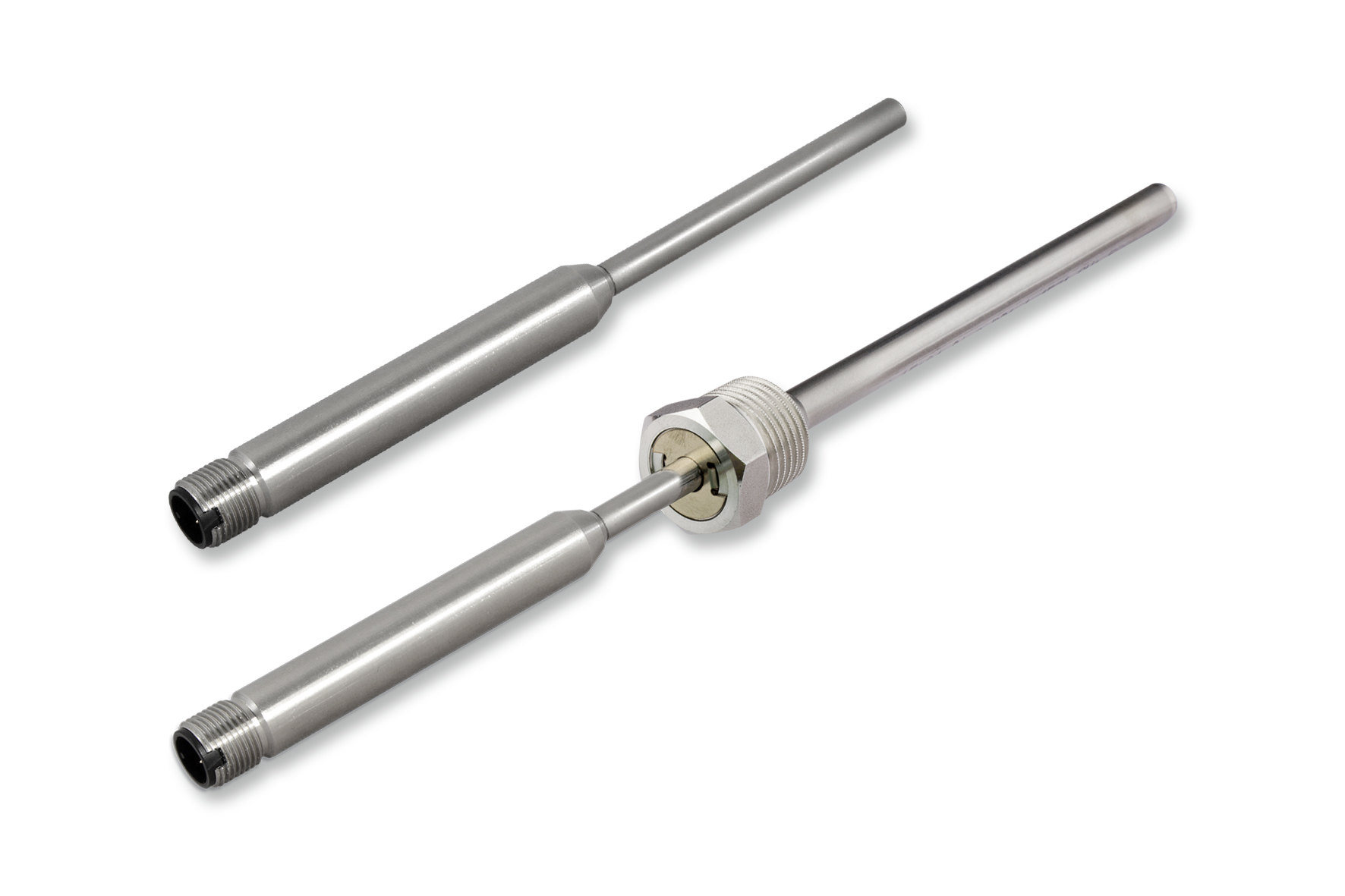

EE074 Modbus Temperature Probe for Air, Gases and Liquids 数字通信 可以测量气体和液态


The EE074 from E+E Elektronik is suitable for accurate temperature measurement of air, gases and liquids. The robust stainless steel probe can be used for climate and process control in the food and pharmaceutical industries, in clean rooms or in agriculture.

The EE074 temperature probe offers a high measuring accuracy最高精度 of ±0.1 °C and a wide measuring range of up to -70...105 °C (-94... 221 °F). 防护等级The IP68 stainless steel enclosure and the fully encapsulated electronics lead to an excellent measuring performance and a longer lifetime even in harsh and condensing environment. The RS485 interface with Modbus RTU protocol facilitates the design-in of the probe.

Immersion Well for Measurement in Liquids

With the optionally available immersion well, the EE074 can be used for temperature measurement in pressurized liquids up to 25 bar (363 psi). The innovative clamp ring allows for fastening the probe in the immersion well without screws and thus without tools. The sensing head with 6 mm diameter is also compatible with other standard immersion wells.

Easy Installation很容易安装

Various probe and cable lengths make the EE074 a flexible and versatile temperature probe. The M12x1 connector and the choice of optionally mounting accessories minimize installation time and costs.

Configuration, Adjustment and Calibration  通过通用软件和可以自由设置量程

An optional adapter and the free configuration software facilitate the setup and adjustment of the EE074. Due to its mechanical design, the probe can be calibrated in a dry-block or liquid bath calibrator.
